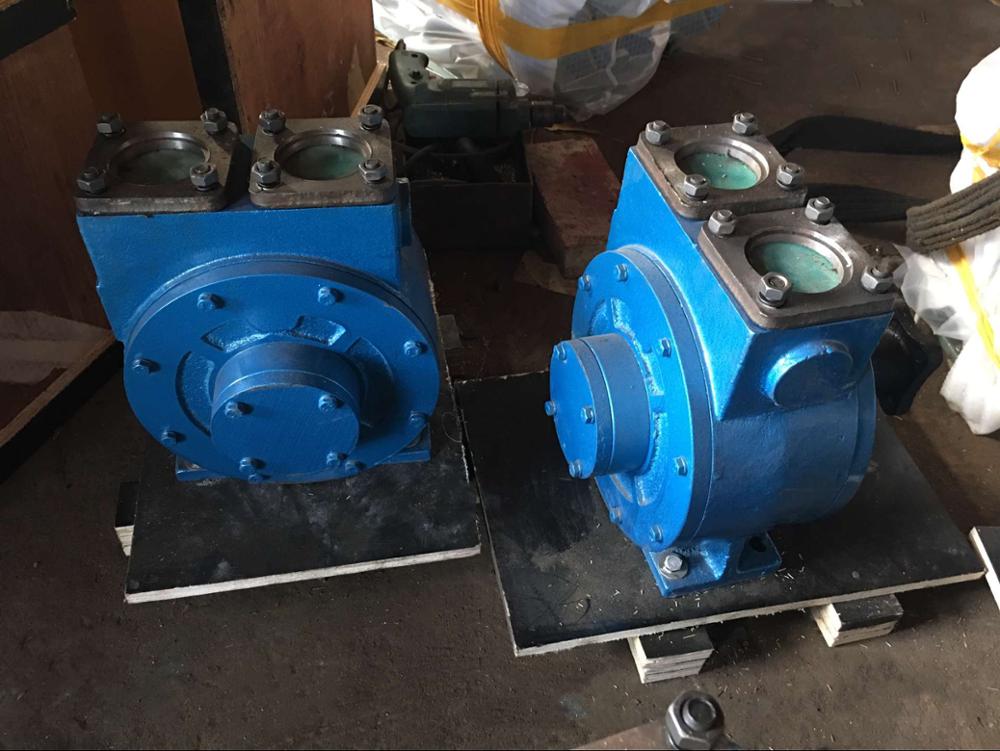

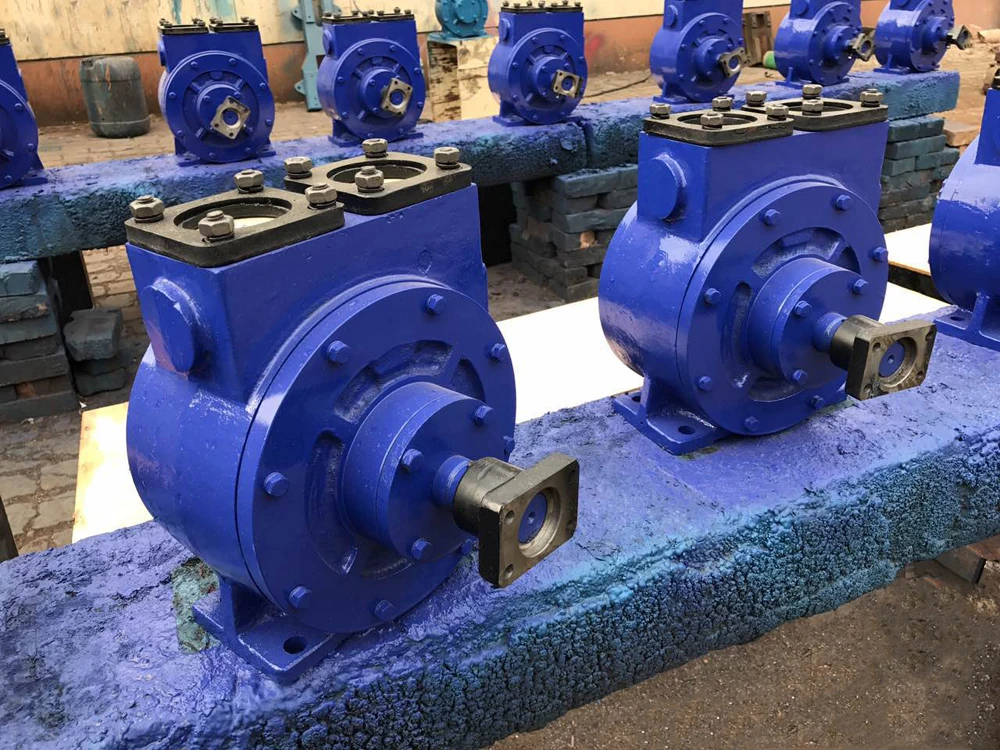

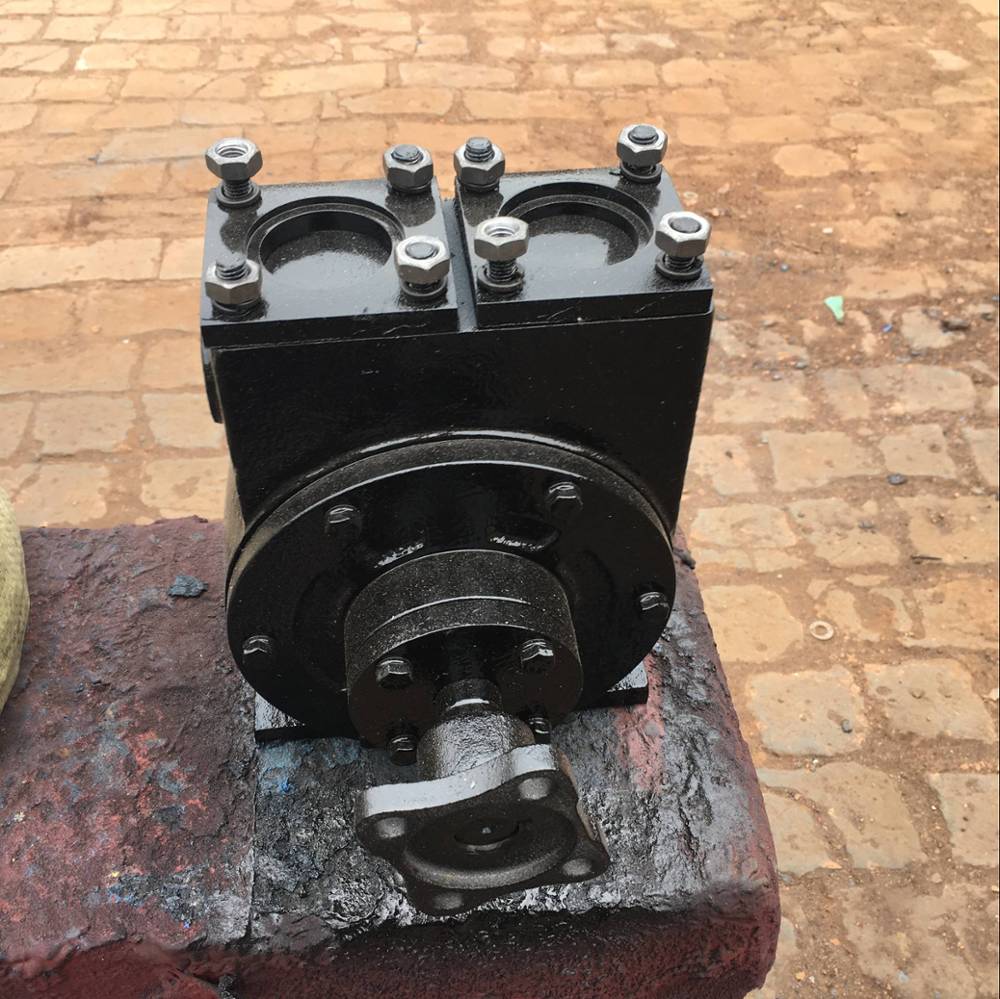

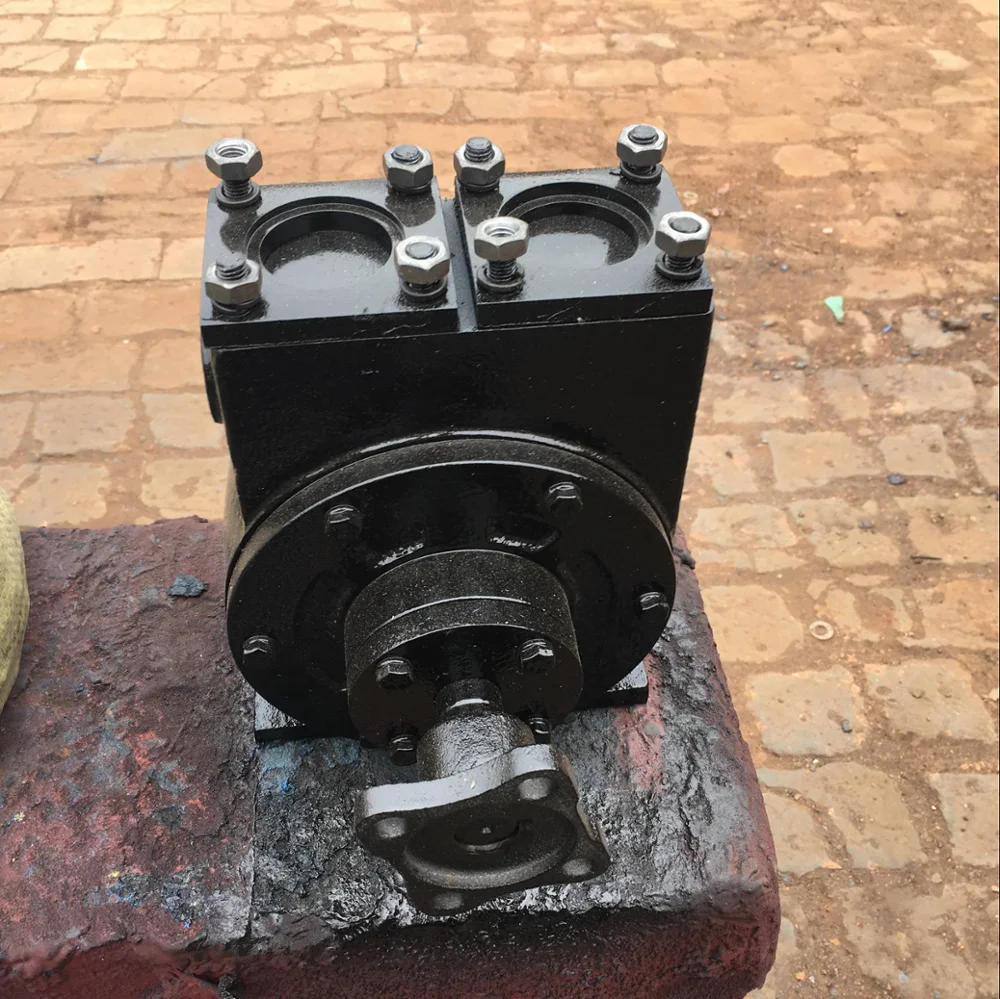

YPB series car engine drive diesel fuel oil vane pump

FOB Reference Price:Get Latest Price
$200.00 - $500.00 / Pieces | 1 Piece/Pieces (Min. Order)
Horsepower:
1.5-15kw
Maximum Flow Rate:
100m3/h
Lead Time:
Quantity(Pieces) 1 - 1 2 - 10 11 - 100 >100
Est. Time(days) 2 7 20 Negotiable
Customization:
Customized logo (Min. Order: 10 Pieces)
Customized packaging (Min. Order: 10 Pieces)

More

Graphic customization (Min. Order: 10 Pieces) Less
Samples - $100.00 /Pieces, 1 Pieces (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
Honghai
Model Number:
YPB
Structure:
vane pump
Usage:
Oil
Application:
transfer diesel fuel oil, gasoline, kerosene etc oil
Power:
Electric
Fuel:
car engine
Pressure:
Low Pressure
Standard or Nonstandard:
Standard
Theory:
Rotary Pump
name:
YPB series car engine drive diesel fuel oil vane pump
Pump Type:
vane pump
Capacity:
8-100m3/h
pressure:
0.4-0.6mpa
diameter:
50-100mm (2''-4'')
Material:
cast iron / stainless steel casing, PTFE vane
temperature:
-20-80 degree
speed:
960-1750rpm
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard export carton or plywood case
Port
xingang,tianjin sea port/beijing airport
Lead Time :
Quantity(Pieces) 1 - 1 2 - 10 11 - 100 >100
Est. Time(days) 2 7 20 To be negotiated

YPB series car engine drive diesel fuel oil vane pump

YPB series car engine drive diesel fuel oil vane pump

Product Description



Introduction:

YPB series car engine drive diesel fuel oil vane pump its working principle is sliding vane in a slot in the rotor and rotor eccentricity on pump body, rotor turns, sliding vane sliding out inside the rotor, close to the sliding surface of the pump body, rotor, vane, pump body cavity is formed by the rotation of the rotor, the dimensional size of periodic change, cavity increases, breathing in medium, cavity become hour, discharge medium, the cycle, complete medium conveying process.



Advantages:
YPB series car engine drive diesel fuel oil vane pump with the blade rotor drive liquid.In the light of the nodular cast iron with self-lubricating material of blade.Because of its good performance, can transmit viscosity and volatile liquid, compared with the same pump power is lower.In the transmission of low speed heavy traffic.Fast, low noise, use for a long time,Vane structure make it reliable and trouble-free service.
YPB series car engine drive diesel fuel oil vane pump has more advantages and strong self-priming capacity, long life, small volume, high efficiency.In transport gasoline, diesel or similar media, under the condition of vane pump has the very big advantage, is a substitute for self-priming centrifugal pump and copper wheel gear pump.



Application:
Oil tank truck, ship fuel, lubricating oil, jet fuel, oil, chemicals, gasoline, diesel oil, biological fuel, solvents etc.





Install and use:
This pump is widely used in mobile or fixed device.This pump can be installed on any oil tanker, can also be connected to the motor or diesel engine, according to the metal on the floor, used in any large flow or flow immersible pump-based fuelling equipment.





Parameters:

Model

Capacity

 M3/h

Pressure

 Mpa

Speed

R/min

Vacuum

 -Mpa

Self-priming

   m

Efficiency

   %

Motor power

  KW

Motor model

50YPB-8

8

0.4

960

0.025

6

75

1.5

Y100L1-6-1.5

50YPB-12

12

0.4

1450

0.030

6.5

76

3

Y112M-4-4

60YPB-16

16

0.6

960

0.030

6.5

76

4

Y132M1-6-4

60YPB-24

24

0.4

1450

0.040

7

79

5.5

Y132S-4-5.5

65YPB-35

35

0.6

960

0.045

6.5

77

5.5

Y132M2-6-5.5

80YPB-60

60

0.4

960

0.045

6.5

79

7.5

Y160M-6-7.5

100YPB100

100

0.6

960

0.045

6.5

79

15

Y180L-6-15
